Server IP Address

 Top  Previous  Next

On startup, Control Center will check the Server or Host PC's IP Address.



 ServerInstallControlCentre

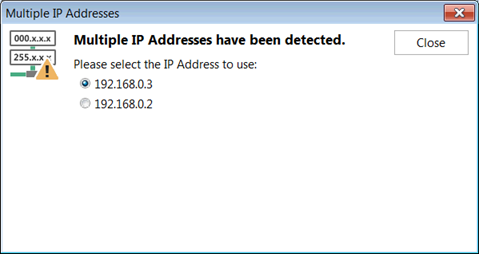

If there are multiple IP Addresses on your Server or Host PC, Control Center will ask you to select one.  Select an IP Address and click OK.



 ControlCentreMultipleIPAddresses





Multiple IP Addresses

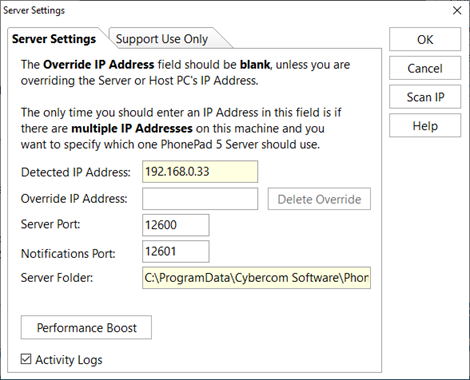

If your Server or Host PC has multiple IP addresses and you need to change which one PhonePad 5 Server uses, click the Settings button and enter a new IP Address.



 ControlCentreSettings



Clicking the Scan IP button allows you to manually scan for multiple IP Addresses on the computer.





LightBulb

Control Center will automatically add the necessary inbound and outbound exception rules to the Windows Firewall on the Server or Host PC so that PhonePad 5 on your workstations can connect to and communicate with the PhonePad 5 Server on your Server or Host PC.
