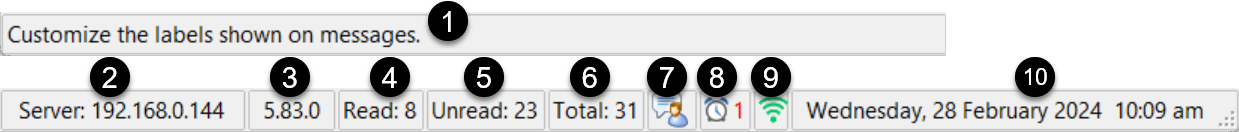

The Status Bar sits at the bottom of the PhonePad main window.
1
This is the connection indicator. If it's green then PhonePad is connected to the Server. If it's red that means the connection to the Server has been lost. PhonePad will automatically try reconnecting.
2
The left side of the Status Bar displays extended hints when the mouse is moved over toolbar buttons and menu items.
3
Displays the IP Address of the PhonePad Server you are connected to.
4
Displays the PhonePad Version Number.
5
Shows how many unread messages are in your Inbox.
6
Shows how many read messages are in your Inbox.
7
Shows the total number of messages that are in your Inbox.
8
Click to access PhonePad Chat.
9
Shows how many due reminders you have. Click to view the due reminders.
10
Shows the current date and time. The format is controlled by System Rules, which is set by a PhonePad administrator. It should normally be in the date and time format for your location.
11
The resize handle allows you to resize the main screen.
If you click on the Unread Messages, Read Messages or Total Messages parts of the Status Bar your Inbox messages will be filtered for you.
